Solar Panel System Clark Street
Updated 3/30/10 We're done with the panels install, wiring will be done Tuesday.
It took untill the end of February to get started on Son Steve's solar system but it's started
The $4.50 per watt rebate has already ended but he had it locked in until the end of April 2010 so
it's "get it done" time.
He's putting in the same system I did last summer but installing it different

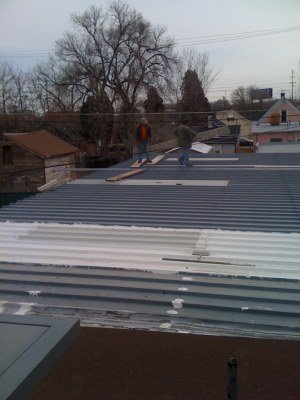

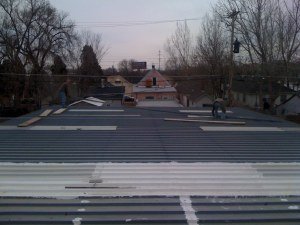

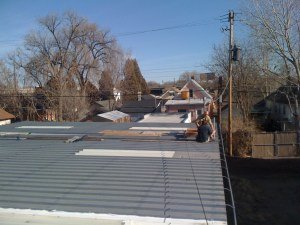

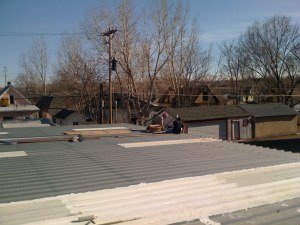

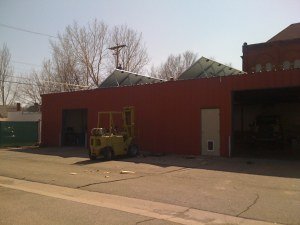

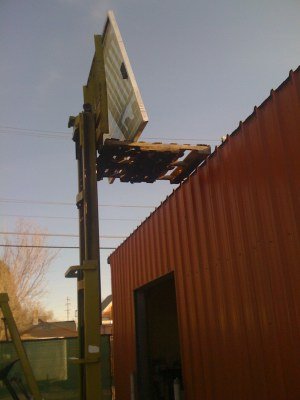

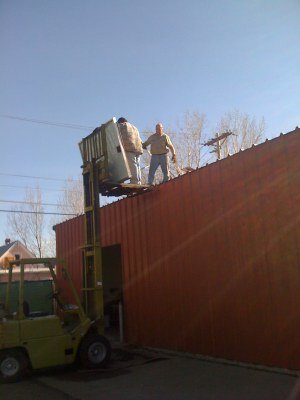

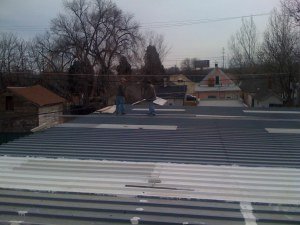

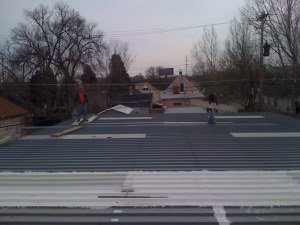

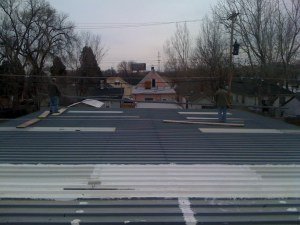

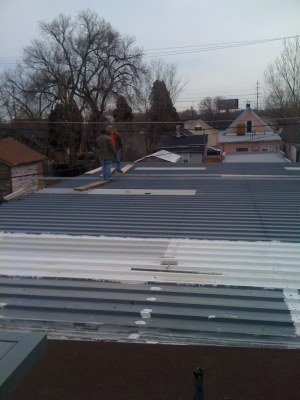

He's installing it on the roof of his large garage, thank God that he has a forklift
Two Arraies of 9 290 watts Schott ASE 300 DGF/50 290 panels
Tied in 3 strings of 6 panels each
Xantrex GT 5K Pure Grid Tie Inverter
Array Tile Angle 30 degrees
Array Orientation 130 degrees (not sure yet)

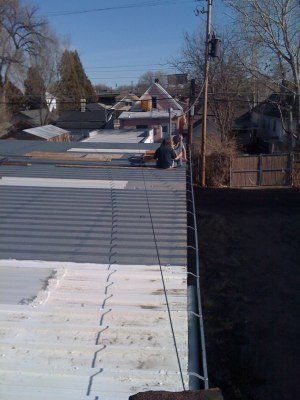

60 feet of 10 guage wiring, 3 wires, postive, negative and ground (waiting for this figure)
One DC shutoff box at the panels
One AC shutoff box after the inverter going into a 30 amp breaker at the main breaker box
Let the sun shine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
|
|
|
|

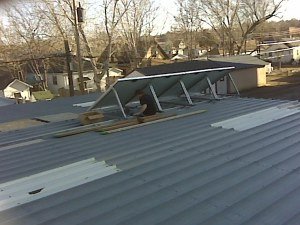

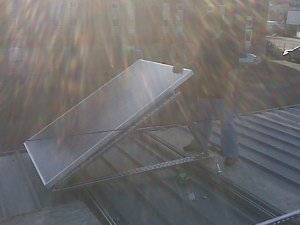

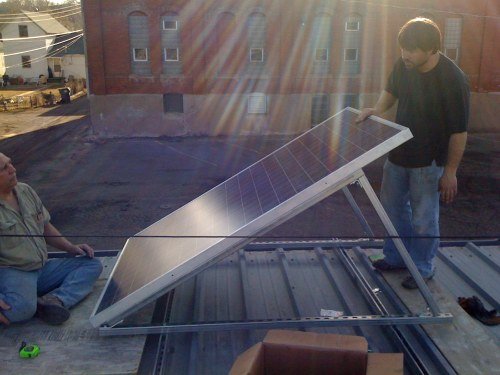

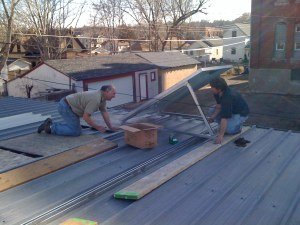

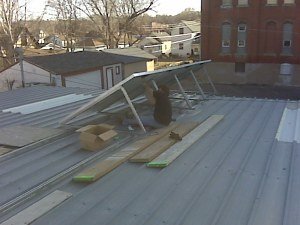

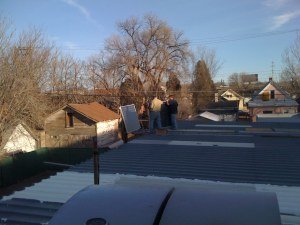

 First Panel, sun was wrong but it was great to get it in
|

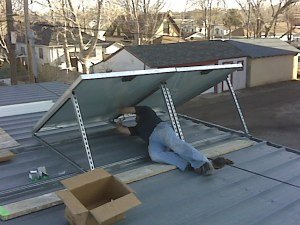

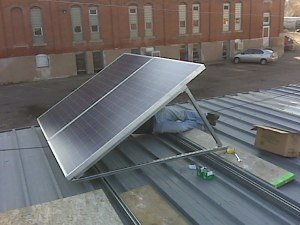

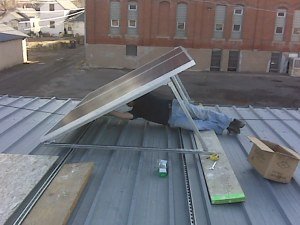

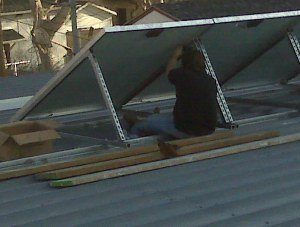

 2nd one was a lot faster
|
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |

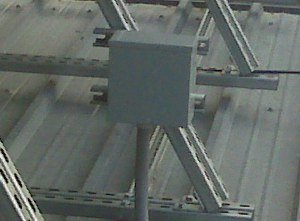

 Combiner Box
All ac goes in, the 8 gu to inverter
|
 Inverter and new breaker box
|
 Xantrex inverter
|

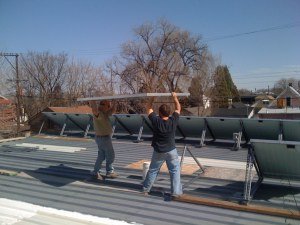

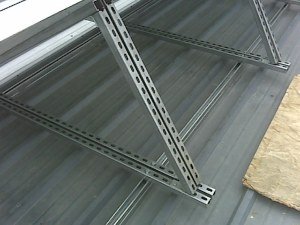

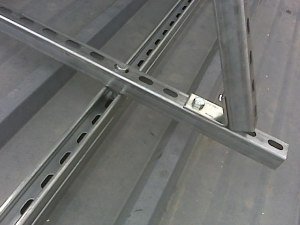

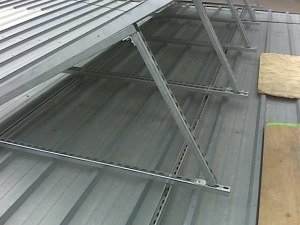

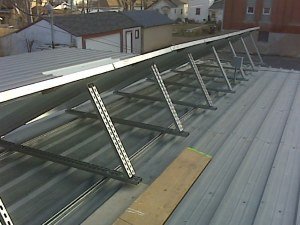

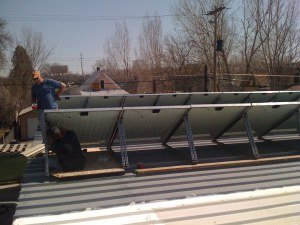

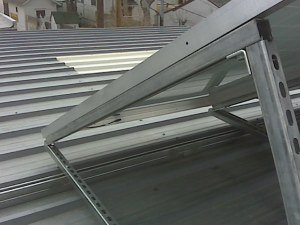

 Panels showing mounts
|
|
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
